***Photo not true to size***

Service Temperature Range:-40F to 248F (-40C to 120C)

Sold by the Foot.

• D: 1 in. (25 mm.)
• OD: 1.46 in. (37 mm.)
• Length: By the foot
• Tube: Bromobutyl, white
• Vacuum: 13 PSI (0.9 Bar)
• Working Pressure: 150 PSI (10 Bar)
• Burst Pressure: 450 PSI (30 Bar)
• Bending Radius: 2.76 in. (70 mm.)
• Temperature Range: -40F to +248F (-40C to +120C)
• Weight: 0.55 lbs./ft. (0.82 kg./mt.)

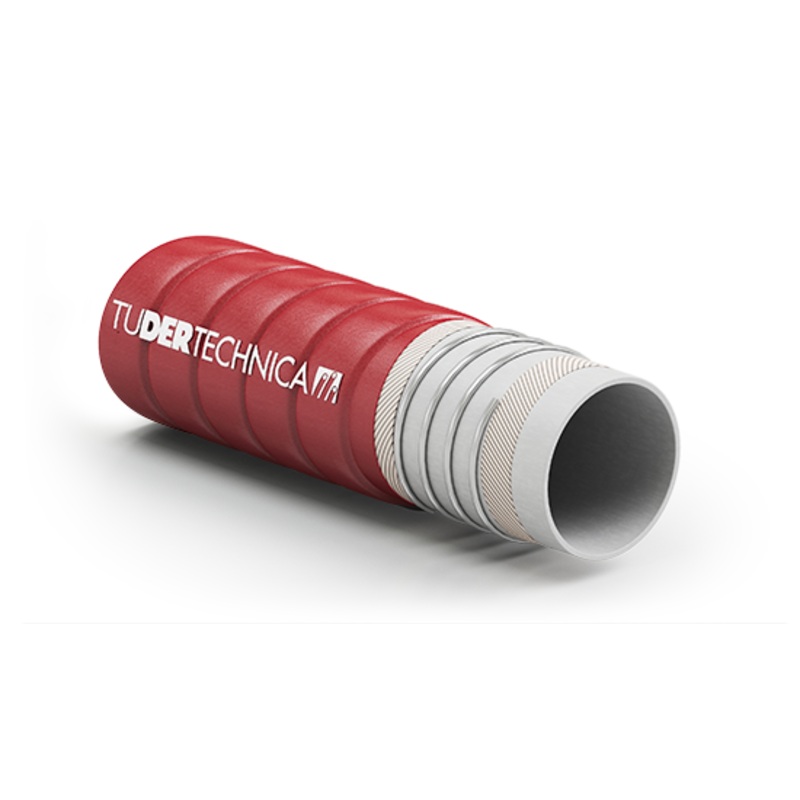

• Branding: TUDERTECHNICA GLIDETECH BUTYL
• Approvals: Tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600; BfR XXI cat. 2; DM 21/03/1973 and subsequent amendments; REGULATION 1935/2004/CE; Japan Ministry of Health and Welfare Notice No.370,1959 and No.201,2006; 3A Sanitary Standards Number 18-03 Class II; Arrt du 09 novembre 1994; ISO 1307 for Dimensional Tolerances
